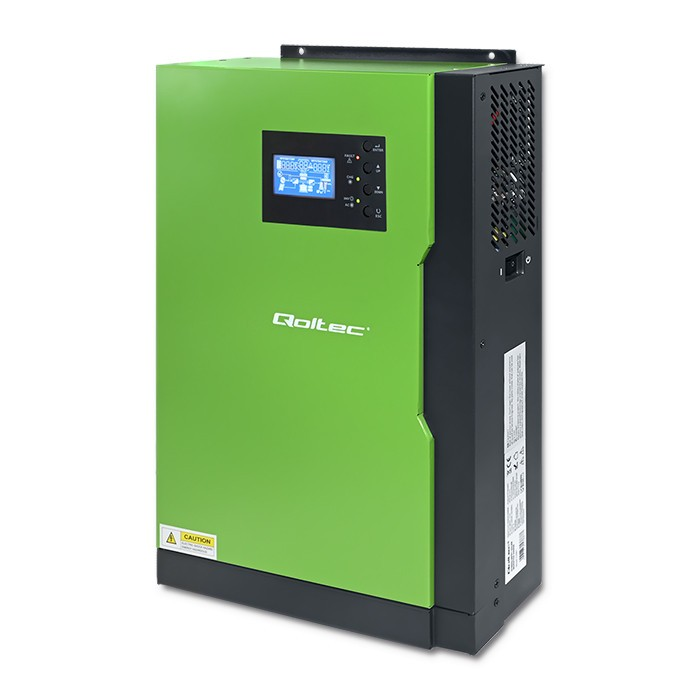

5500W Hybrid Solar Off-Grid Inverter

The off-grid hybrid inverter converts the energy generated by PV modules into the energy needed to operate electrical appliances. It also functions as a solar charger and a battery charger. It is equipped with a multi-function LCD display that records operating data, allowing for continuous monitoring and management of the entire system. The inverter operates in off-grid mode. It has a built-in 100A MPPT charge controller. It is possible to connect an additional wi-fi module. Max.

Solar Charging Current: 100 A

Battery Voltage: 48 V DC

INPUT PARAMETERS:

Nominal Input Voltage: 230 VA C

Input Range: 90 - 280 VAC

Operating Frequency: 60/50 HZ

OUTPUT PARAMETERS:

Maximum Power: 10000VA

Efficiency: 90% ~ 93%

Transition Time: 10 MS (PC), 20 MS (HOUSEHOLD APPLIANCES)

Wave Source: Pure Sine Wave
